Digital Oscilloscopes UNI-TREND from UNI-T: model line review

ООО Приборторг
2017-08-11

Contents:

  1. General information about UTB-TREND series
  2. Advantages of UTB-TREND oscilloscopes
  3. Name decoding
  4. Model line review
  5. Comparison of technical characteristics

General information about UTB-TREND series

Digital oscilloscopes UTB-TREND are reliable and affordable instruments for measuring and analysis of peak and time parameters of electric signals.

Inside the line, oscilloscopes can be divided into the following groups:

  1. by design:
    • portable - portable models that can be used in the field (UTB-TREND 711-025-1, UTB-TREND 712-050-2, UTB-TREND 712-080-3, UTB-TREND 712-200-4),
    • bench - bench models with large display, best choice for laboratories,
    • institutes, repair shops (UTB-TREND 722-050-5, UTB-TREND 722-100-6, UTB-TREND 722-200-7, UTB-TREND 724-300-8, UTB-TREND 722-300-9).
  2. by the number of channels:
    • 1-channel (UTB-TREND 711-025-1)
    • 2-channel (UTB-TREND 712-050-2, UTB-TREND 712-080-3, UTB-TREND 712-200-4,UTB-TREND 722-050-5, UTB-TREND 722-100-6, UTB-TREND 722-200-7, UTB-TREND 722-300-9)
    • 4-channel (UTB-TREND 724-300-8)

Advantages of UTB-TREND oscilloscopes


Have a declaration of the Technical Regulations of the Customs Union, which confirms their safety during operation;
Are included in the State Register of measuring instruments of the Republic of Belarus and are supplied with verification (or, if the customer so desires, with calibration);
The warranty period is 1 year, warranty and post-warranty support is provided in the official service center of the UNI-T center "Kalibron" in Minsk;
Our company is the official representative of the manufacturer in the Republic of Belarus, which guarantees the availability of official service and support;
In stock in our company's warehouse in Minsk;
The complete set of accessories is included in the complete set of delivery (probes with dividers for each input, a portable cover, additional dividers for the channel of the multimeter, the power unit);
Software for analyzing data on a PC in free access;
Autotune function (AUTO) in all models - for quick adjustment of waveform display;
Portable models capable of running on battery power.

Name decoding of UTB-TREND oscilloscopes

The oscilloscopes from UNI-T have the following markings: UTB-TREND XYZ-W-Q

  • UTB-TREND - series of oscilloscopes
  • X – 7 – digital oscilloscope
  • X – 7 –
    • 1 - portable (field);
    • 2 - stationary (bench);
  • Z – number of channels (1, 2, 4);
  • W - bandwidth (MHz);
  • Q - unique model serial number.

Example:

Oscilloscope UTB-TREND 724-300-8:

  • 7 - digital oscilloscope,
    2 - stationary,
    4 - 4-channel,
    300 - with the bandwidth of 300 MHz,
    8 - unique identity number ("eight").

Model line review

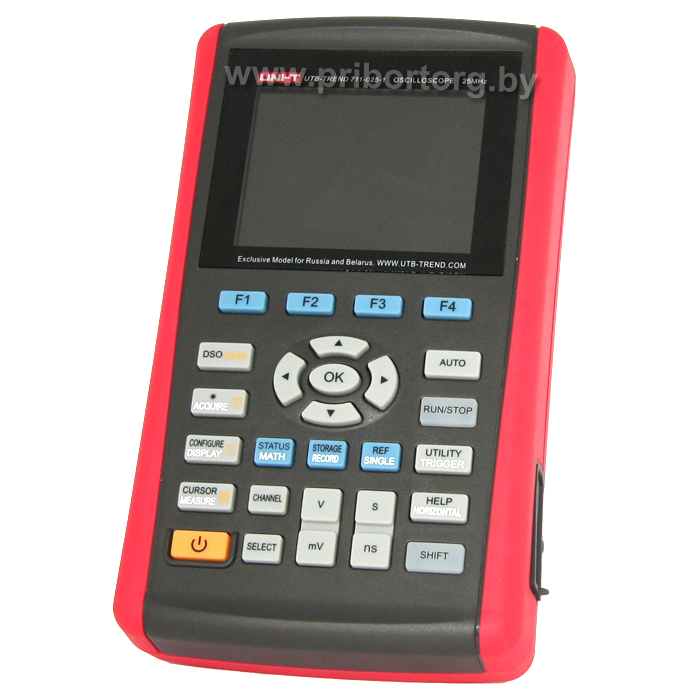

Digital oscilloscope UTB-TREND 711-025-1

Фото осциллографа UTB-TREND 711-025-1

Ideal for conducting measurements in the field.

Functions:- built-in meander generator;
- additional multimeter mode;
- hold mode (selection, peak, averaging);
- adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis:
- system of cursory measurements;
- system of automatic measurements (19 parameters);
- waveforms record;
- display of previously saved reference signal;
- FFT-analysis;
- autonomous work from built-in power supply.

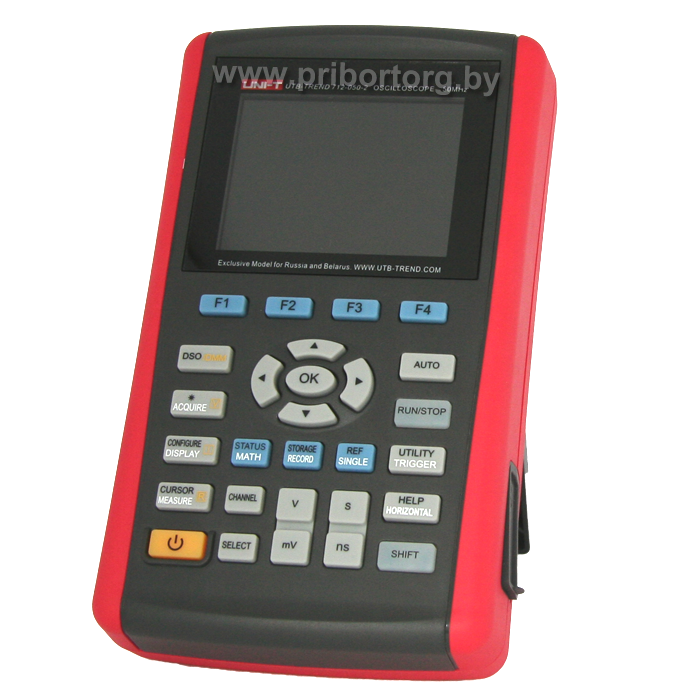

Digital oscilloscope UTB-TREND 711-050-2

Фото осциллографа UTB-TREND 712-050-2

Optimal for analysis and adjustment of electrical equipment, allows to quikly perform work at high load.

Functions:- built-in meander generator;
- additional multimeter mode;
- hold mode (selection, peak, averaging);
- adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis:
- system of cursory measurements;
- system of automatic measurements (22 parameters);
- waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- autonomous work from built-in power supply.

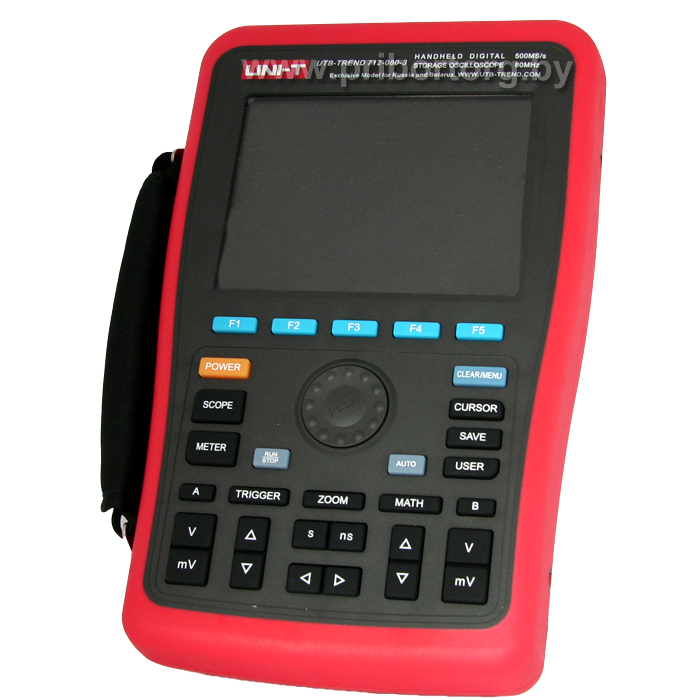

Digital oscilloscope UTB-TREND 711-080-3

Фото осциллографа UTB-TREND 712-080-3

Portable oscilloscope with big display and intuitive controls.

This model has a special offer!

Functions:
- built-in meander generator;
- additional multimeter mode;
- hold mode (selection, peak, averaging); - adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis:
- system of cursory measurements;
- system of automatic measurements (27 parameters);
- waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- autonomous work from built-in power supply.

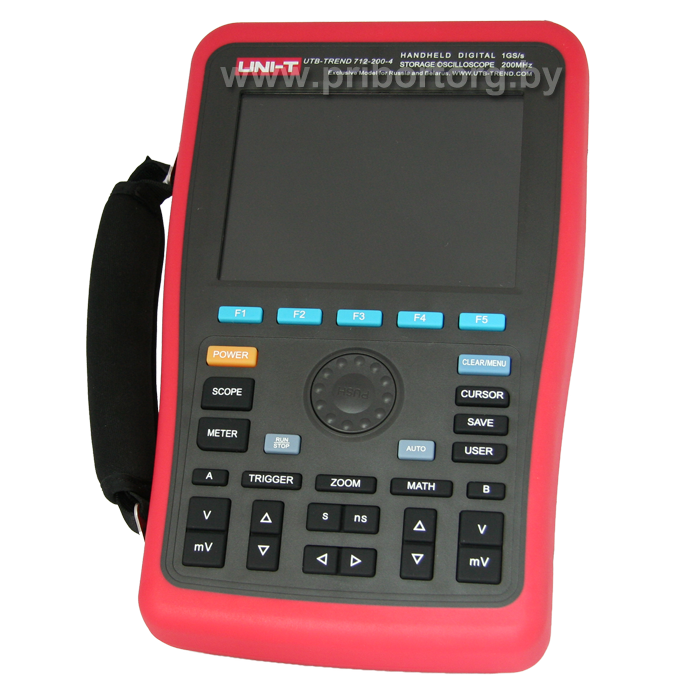

Digital oscilloscope UTB-TREND 712-200-4

Фото осциллографа UTB-TREND 712-200-4

Laboratory characteristics in a solid and compact case. Universal multi-tasking device for working both in field and laboratory conditions.

This model has a special offer!

Functions:
- built-in meander generator;
- additional multimeter mode;
- hold mode (selection, peak, averaging); - adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis:
- system of cursory measurements;
- system of automatic measurements (27 parameters);
- waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- autonomous work from built-in power supply.

Digital oscilloscope UTB-TREND 712-200-4

Фото осциллографа UTB-TREND 712-200-4

Best device for radio amateurs, educational institutions and repair work.

Functions:
- hold mode (selection, peak, averaging);
- adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis;
- system of cursory measurements;
- system of automatic measurements (24 parameters);
 - waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- a full set of frequency filters for input channels (high, low and bandpass);
- built-in meander generator;

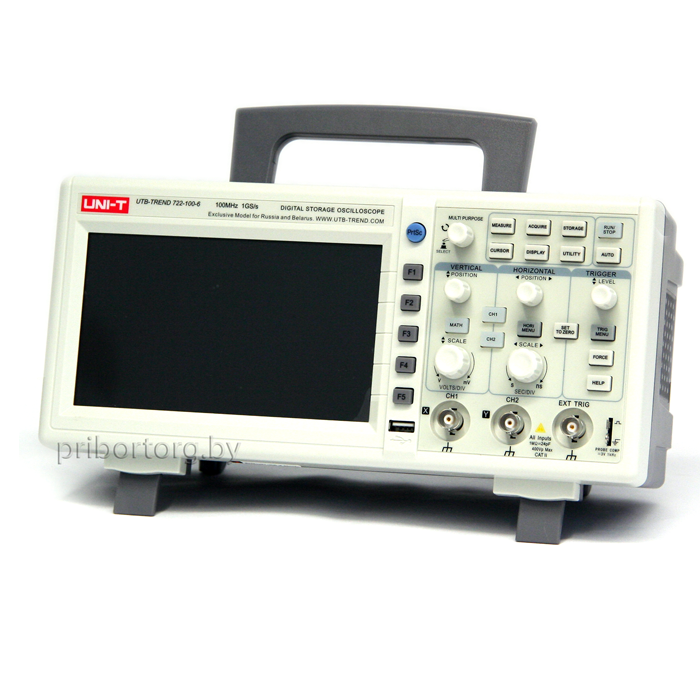

Digital oscilloscope UTB-TREND 722-100-6

Фото осциллографа UTB-TREND 722-100-6

Stationary device for solving a wide range of tasks: from repair to engineering.

Functions:
- hold mode (selection, peak, averaging);
- adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis;
- system of cursory measurements;
- system of automatic measurements (24 parameters);
- waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- a full set of frequency filters for input channels (high, low and bandpass);
- built-in meander generator;

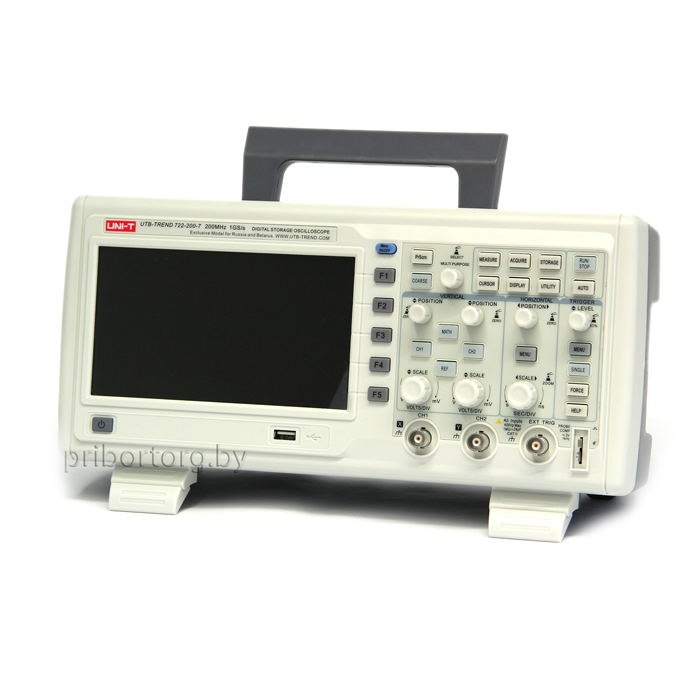

Digital oscilloscope UTB-TREND 722-200-7

Фото осциллографа UTB-TREND 722-200-7

Осциллограф, обладающий высокой точностью и быстродействием.

Oscilloscope with high performance and accuracy.

Functions:
- hold mode (selection, peak, averaging);
- adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis;
- system of cursory measurements;
- system of automatic measurements (24 parameters);
 - waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- a full set of frequency filters for input channels (high, low and bandpass);
- built-in meander generator;

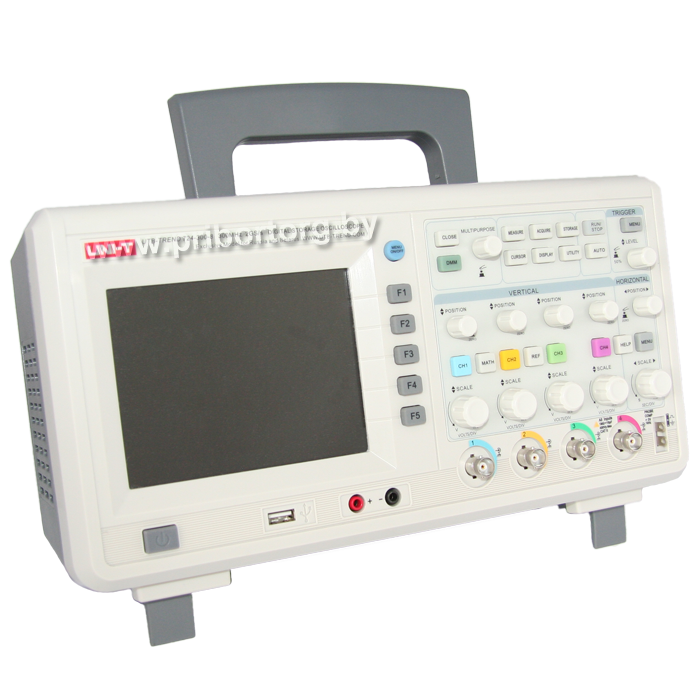

Digital oscilloscope UTB-TREND 724-300-8

Фото осциллографа UTB-TREND 724-300-8

Universal device for debugging analog circuits.

Functions:
- hold mode (selection, peak, averaging);
- adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis;
- system of cursory measurements;
- system of automatic measurements (24 parameters);
- waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- a full set of frequency filters for input channels (high, low and bandpass);
- built-in meander generator.

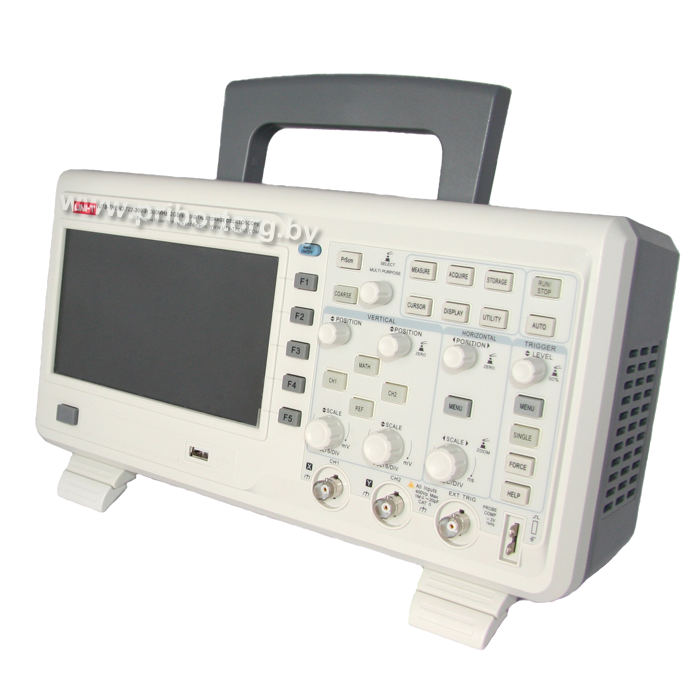

Digital oscilloscope UTB-TREND 724-300-9

Фото  осциллографа UTB-TREND 724-300-9

The most accurate and fast oscilloscope from the TREND series

Functions:
- hold mode (selection, peak, averaging);
- adjustable synchronization modes (front , impulse, slope, video);
- zoom and signal delay for detailed analysis;
- system of cursory measurements;
- system of automatic measurements (24 parameters);
- waveforms record;
- display of previously saved reference signal;
- set of mathematical functions (+, -, *, /, FFT-analysis);
- a full set of frequency filters for input channels (high, low and bandpass);
- built-in meander generator;

Comparison of models in the UTB-TREND line

Here is the table of the main characteristics for easy comparison of the entire line.

UNI-TREND 711-025-1 712-050-2 712-080-3 712-200-4 722-050-5 722-100-6 722-200-7 724-300-8 722-300-9
Channels 1 2 2 2 2 2 2 4 2
Bandwidth 25 MHz 50 MHz 80 MHz 200 MHz 50 MHz 100 MHz 200 MHz 300 MHz 300 MHz
Sampling rate 200 MS/s 250 MS/s 500 MS/s 1 GS/s 500 MS/s 1 GS/s 1 GS/s 2 GS/s 2 GS/s
Memory depth 12 K 12 K 7.5 K 7.5 K 25 K 25 K 16 K 24 K 24 K
Record length 1.5 M-point 3 M-point 2x512 k-point 2x512 k-point 2x512 k-point 2x512 k-point   1024 k-point 1024 k-point
Rise time ≤ 14 ns ≤ 7 ns ≤4.5 ns ≤ 1.8 ns ≤ 7 ns ≤ 3.5 ns ≤ 1.8 ns ≤ 1.2 ns ≤ 1.2 ns
Sweep range 10 ns/div - 50 s/div 5 ns/div - 50 s/div 5 ns/div - 50 s/div 2 ns/div - 50 s/div 5 ns/div - 50 s/div 5 ns/div - 50 s/div 2 ns/div - 50 s/div 1 ns/div - 50 s/div 1 ns/div - 50 s/div
Range of vertical deflection coefficients 5 mV/div -20 V/div 5 mV/div -20 V/div 5 mV/div -20 V/div 5 mV/div -20 V/div 1 mV/div -20 V/div 1 mV/div -20 V/div 2 mV/div -20 V/div 2 mV/div -20 V/div 2 mV/div -20 V/div
Max. input voltage 400 V 400 V 400 V 400 V 400 V 400 V 400 V 400 V 400 V
Display 3.5'' (320x240) 3.5'' (320x240) 5.7'' (320x240) 5.7'' (320x240) 7'' (400x240) 7'' (800x480) 7'' (800x480) 5.7'' (320x240) 7'' (800x480)
Interface USB USB USB USB USB USB USB USB, LAN USB
Power supply 100 -240 V 50 - 60 Hz 1.5 A 100 -240 V 50 - 60 Hz 1.5 A 100 -240 V 50 - 60 Hz 1.5 A 100 -240 V 50 - 60 Hz 1.5 A 100 -240 V 45 - 440 Hz 1.5 A 100 -240 V 45 - 440 Hz 1.5 A 100 -240 V 45 - 440 Hz 1.5 A 100 -240 V 45 - 440 Hz 1.5 A 100 -240 V 45 - 440 Hz 1.5 A
Size 199 x 118 x 49 mm 199 x 118 x 49 mm 268 x 168 x 60 mm 268 x 168 x 60 mm 306 x 147 x 122 mm 268 x 168 x 60 mm 330 x 155 x 130 mm 330 x 165 x 165 mm 330 x 165 x 165 mm
Weight 0.9 kg 0.9kg 1.8 kg 1.8 kg 2.2 kg 2.2 kg 2.9 kg 3.8 kg 3.8 kg

The oscilloscopes UTB-TREND 712-080-3 and UTB-TREND 712-200-4 have a special offer now - the price is reduced by more than 43%.

Detailed characteristics of the models can be found in the corresponding section of our website. Or you can call the sales department.  Our consultants will help you choose the optimal oscilloscope for specific tasks from the UTB-TREND line.
