Review of Sonel PQM Power Quality Analyzers.

  1. Modifications of Sonel PQM power quality analyzers
  2. Functions of Sonel Analysis software for power quality analyzers
  3. Advantages of PQM power quality analyzer
  4. How to choose a suitable model

In March, 2017 the series of PQM power quality analyzers by Sonel was included into the State Register.
The devices of PQM series are designed for complete and comprehensive analysis of electric power according to the requirements of State Standard 32144-2013.

Measurable parameters:

  • voltage
  • current
  • frequency
  • power (active, reactive, full, distorted)
  • power factor
  • harmonic and interharmonic of voltage, current, etc.

Functions:

  • registration of overvoltages, dips, interruptions with recording of oscillograms
  • registration of oscillograms of voltages and currents
  • registration of short-term and long-term dose of flicker
  • registration of non-sinusoidal voltages
  • automatic setting of protocols of parameters of electric power in pdf, html, txt, csv formats

Analyzers of A class are supplied with OR-1 adapter for wireless data transfer. The adapter works similarly to Bluetooth but uses other frequency for connection. Maximum distance between connected objects is up to 5 m.

Modifications of Sonel PQM power quality analyzers

Review and comperative characteristics of PQM power quality analyzers:

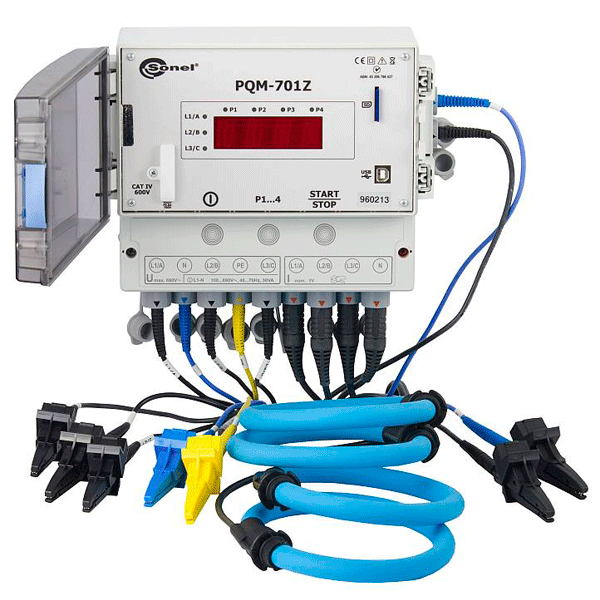

PQM - 701 / 701Z / 701Zr

PGM-701z analyzer
  • corresponds to A class (State Standard 30804.4.30)
  • USB cable for data transfer
  • OR-1 adapter for wireless data transition
  • communication and control via GPRS modem (PQM-701Zr)

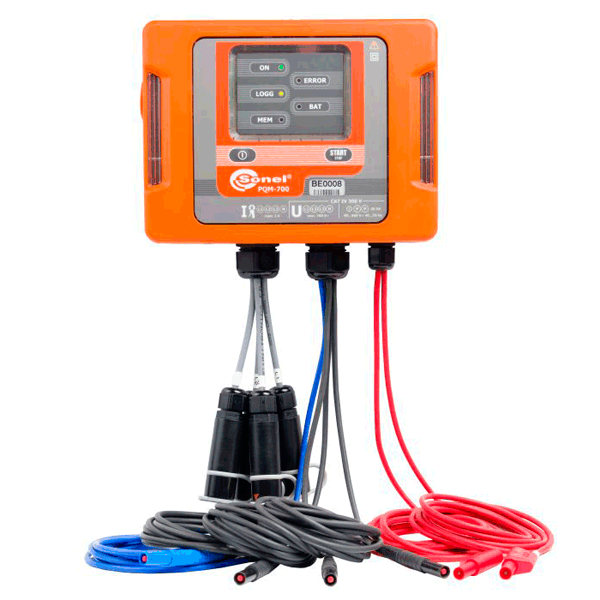

PQM - 700

  • corresponds to S class (State Standard 30804.4.30)
  • USB cable for data transfer

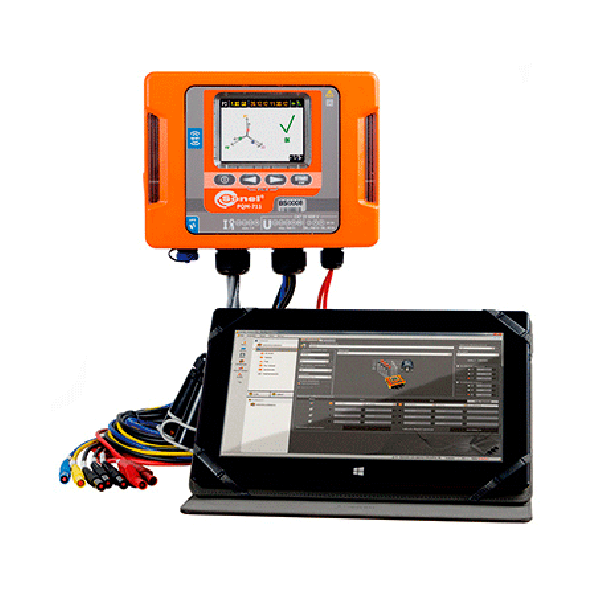

PQM - 710 / 711 / 702 / 703

  • corresponds to A class (State Standard 30804.4.30)
  • USB cable for data transfer
  • transient measurement up to ±6000 V (PQM-711/703)
  • built-in GSM modem and GPS module with the function of theft protection
  • availability of tablet with Wi-Fi access (PQM-710/711)
  • OR-1 adapter for wireless data transition (PQM-702/703)

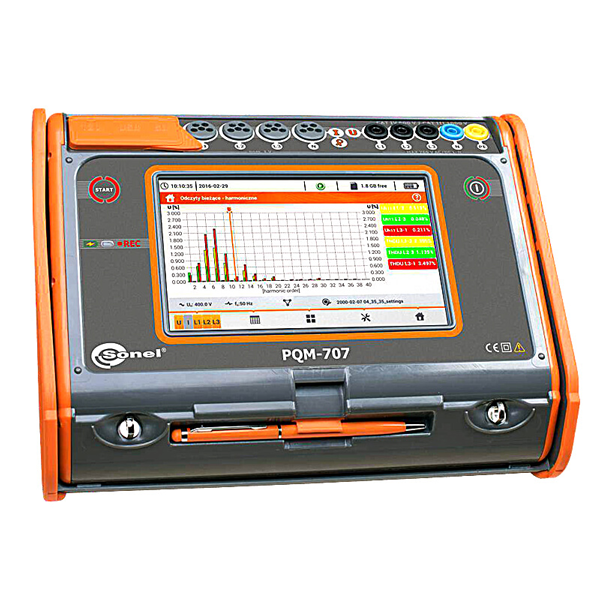

PQM - 707

  • corresponds to S class (State Standard 30804.4.30)
  • USB cable for data transfer

Functions of Sonel Analysis software for power quality analyzers

All the PQM analyzers are supplied with Sonel Analysis software. The software is translated and allows creating reports in Russian language.

Main functions of the program:

  • setting up of the analyzer
  • thorough control of the analyzer's work
  • data analysis
  • automatic reports
  • function "Switch on registration according to the State Standard 32144-2013"

When registration function is active the device sets up all the necessary parameters according to the standard itself. The operator just has to set up the type of the network, its rate and the way of connection. This function allows to set up the analyzer according to the necessary standard quick and easy, without diving deep into studying it.

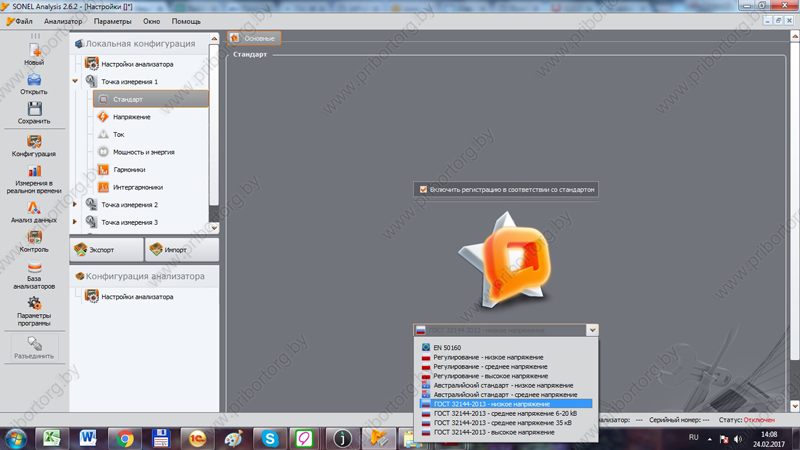

Интерфейс Sonel Analysis

We recommend to install Sonel Analysis software to take a closer look at its capabilities and analyze previously recorded files with measurements. The installation file, recorded data and necessary consultations you can get at the sales department of Pribortorg Co. Ltd.

Advantages of PQM power quality analyzer

  • 3 year warranty
    The devices are designed and produced in the European Union - at the Sonel S.A. factory in Poland. Among the consumers of this production are companies from Europe, North America, Asia and Australia. Sonel company is sure about the quality of its production. That's why PQM analyzers have a 3 year warranty.
  • Multiple functions.
    The level of the software and the depth of registration settings of PQM are much higher that allows not only to solve problems required by State Standards but also to analyze the network deeply (e.g. detect the sources of non-sinusoidal voltage, detect up to the 50th interharmonic of voltage and current, registrate harmonics of active, reactive and full power, etc.)
  • High rate of case protection (IP65).
    PQM analyzers for work in hard environment with the tempetature from -20 to 55 С. When the temperature goes below zero the built-in heating activates automatically. IP65 case provides full protection from dust and water in every direction.
  • Autonomous power supply.
    Practically all the devices can use wide range of voltage as power source: from 90 to 760 V AC and from 127 to 760 V DC. When external power supply is absent the device automatically switches to the built-in battery that allow more than 2 hours of work. When the voltage is applied, the work and registration will resume automatically.
  • The ability to transfer data to a PC.
    Depending on the model chosen, communication with the computer is possible not only via USB, but also using the OR-1, Wi-Fi or GPRS radio channel.
  • Transient measurement.
    PQM-703 and PQM-711 analyzers additionally allow to measure transients (short bursts during transient processes) in a range of voltages up to ± 6 kV with a sampling frequency from 100 kHz to 10 MHz.
  • Built-in GPS receiver.
    The GPS receiver built into the PQM-702, PQM-703, PQM-710, PQM-711 not only allows accurate time synchronization, but also protects the device from theft by sending notifications when the location coordinates of the device change.
  • Supplied tablet.
    Standard configuration of the analyzers of the PQM-711/710 series  includes a tablet, with installed and customized software, a backpack for easy carrying, and a set of necessary accessories.

How to choose a suitable model

How to choose the one from the series of models that is optimal for solving your problems?

  1. Let us choose the class of the devise according to the State Standard  30804.4.30

S class ("observation")

Devices have reduced requirements for measuring accuracy. Permitted for use in conducting surveys and monitoring, in assessing the quality of electricity using statistical methods or with a limited nomenclature of indicators.

A class ("increased accuracy")

The devices are used in the testing of compliance with standards, the implementation of the terms of contracts that provide for the possibility of resolving disputes through measurements, and in other works that require data of high accuracy.

  1. Let us choose functions among the devices of the suitable class.

S class: PQM-700 or PQM-707.

The main feature of the PQM-707 is a large touch screen with backlight. This device is suitable for specialists who need to take data and analyze them directly at the facility.

The model PQM-700 made a bet on the functions of the recorder. The device is protected from ingress of dust and moisture (IP 65), keeps the measurement accuracy at a temperature from -20 ° C to + 55 ° C, therefore it is suitable for work in unfavorable external conditions. All received data for processing and analysis must be sent to the PC.

A class: PQM-701Z / 701Zr, PQM-702, PQM-703, PQM-710, PQM-711.

Distinctive features are shown in the table.

Model PQM-701Z / 701Zr* PQM-702 PQM-703 PQM-710 PQM-711
Interface OR-1, USB, GPRS (701Zr) OR-1, GSM, USB OR-1, GSM, USB Wi-Fi, GSM, USB Wi-Fi, GSM, USB
GPS for time synchronization - + + + +
Transient analkysis - - + - +
Max. volume of memory card 2 Gb 8 Gb/ (32Gb optional) 8 Gb/ (32Gb optional) 8 Gb/ (32Gb optional) 8 Gb/ (32Gb optional)
Tablet with software - - - + +
Screen LED segments LCD 3.5'' LCD 3.5'' LCD 3.5'' + tablet 10'' LCD 3.5'' + tablet 10''

Note*: PQM 701Z/ 701Zr does not have GPS-receiver for time synchronization as it is recommended for class A by the State Standard. But the device has a built-in clock with the variation of less than ±0.3 in 24 hours which meets the requiremqnts of the standard for class A.



Based on the information provided, you can choose among the PQM series a model that best solves the problems of certain professionals. F you have any questions or need a presentation of devices from the PQM series - please contact our technical experts. We will be glad to help!
